This section explains how to create subtitled Sofdec2 data (subtitled movies).

Required Files

To create a subtitled movie, you will need the following three types of files.

Multiplex these files to create the Sofdec2 data.

Preparing the Subtitle Information File

First, you will need to prepare a subtitle information file.

Subtitle information file is a text-format file that designates the timing at which the subtitle content (strings) should be displayed.

Write the subtitle content and display time information in a text file in the format described on the following page:

Run the Sofdec2 Encoding Wizard.
Set the platform, video material file, and audio material file on each page.

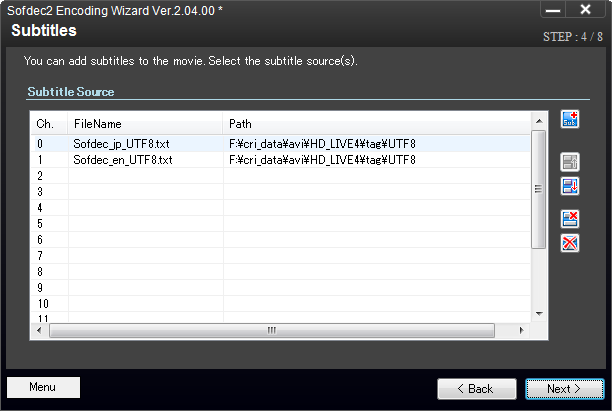

Specify the subtitle information files on the [Specifying Input Subtitle Materials] page.
First, select the [Specify Subtitle File] radio button.

Next,

click the [Specify Subtitle File] button and register the subtitle information file.

You can register a subtitle information file to any subtitle channel from 0 to 15.

After you set the output destination and other encoding parameters, perform the encoding to create the subtitled movie data.

[Remarks]

(a)	You can include up to 16 sets of subtitles in a single movie.
(b)	Specify the subtitle channel you specified when creating the data during playback with the criManaPlayer_SetSubtitleChannel function.
